EXN-23363-BKP

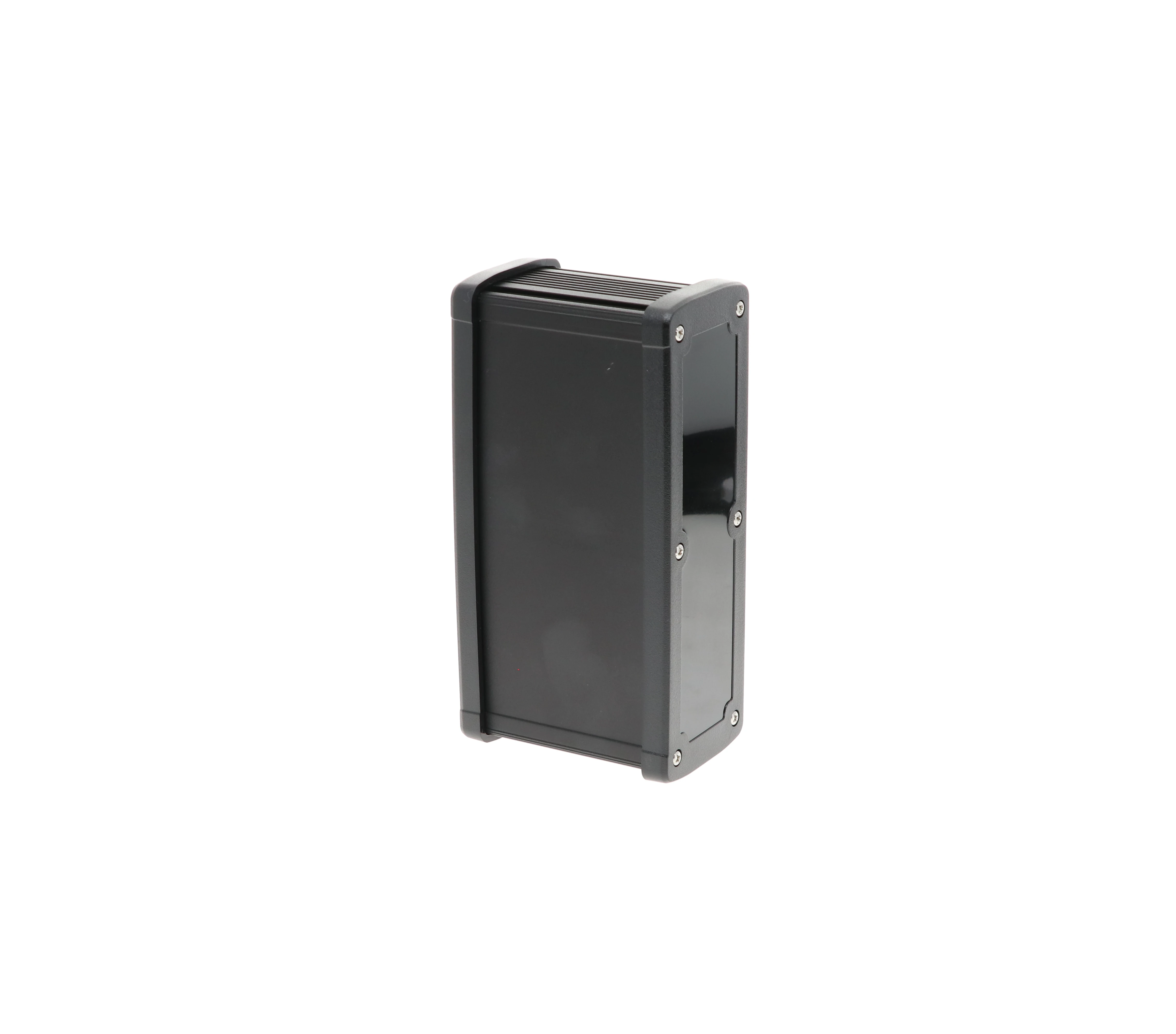

Extruded Aluminum Enclosure Black with Plastic Cover EXN-23363-BKP
  • Extruded Aluminum Enclosure Black with plastic cover EXN-23363-BKP

Product Details

Model # EXN-23363-BKP EXN Series Extruded Alumimum Enclosure

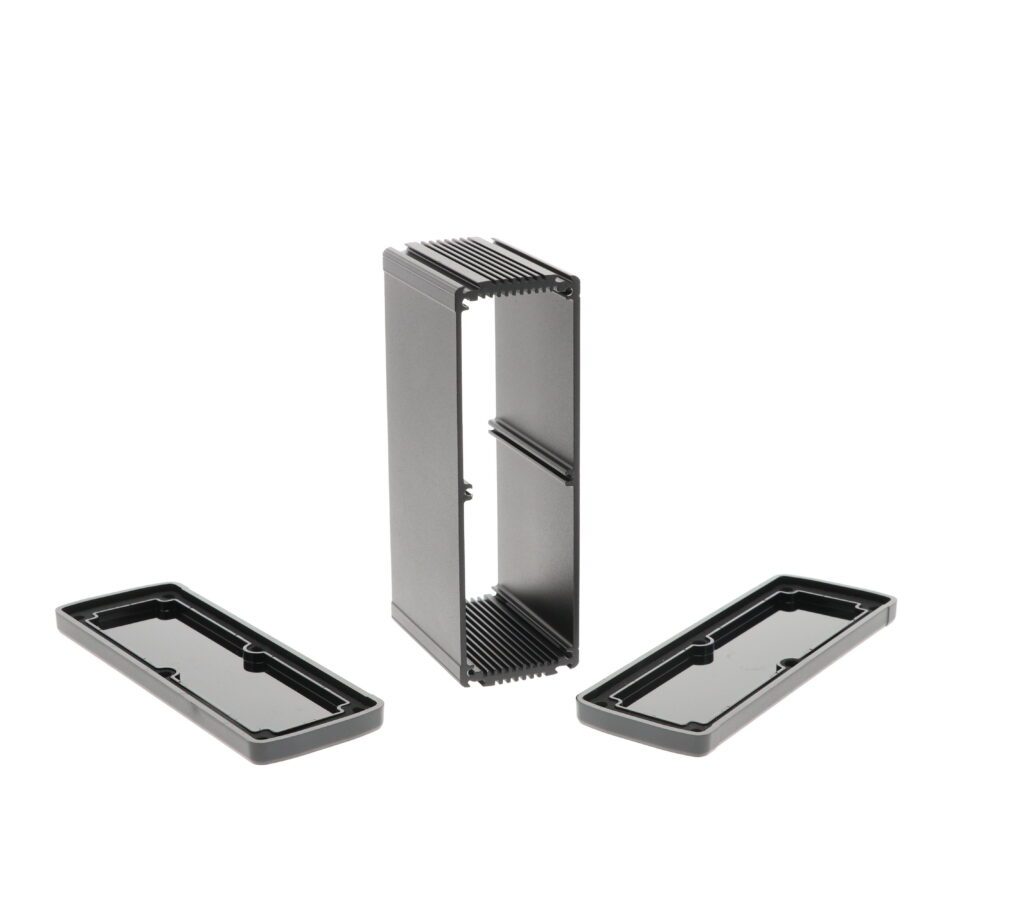

  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized black
  • Covers are black colored polycarbonate plastic (UL94-V0)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Dimensions: 6.99" x 3.5" x 2.41"
Internal Dimensions: 6.14" x 3.15" x 2.12"
Weight: 0.79 lbs
Color: Black
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Plastic Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23363.pdf hbexn23363.dxf

Drawing
