EXN-23364-BLP

Extruded Aluminum Enclosure Blue with Plastic Cover EXN-23364-BLP
  • Extruded Aluminum Enclosure Blue with Plastic Cover EXN-23364-BLP

Product Details

Model # EXN-23364-BLP EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized blue
  • Covers are blue colored polycarbonate plastic (UL94-V0)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Dimensions: 6.99" x 5.08" x 2.41"
Internal Dimensions: 6.14" x 4.72" x 2.12"
Weight: 1.11 lbs
Color: Blue
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23364.pdf hbexn23364.dxf

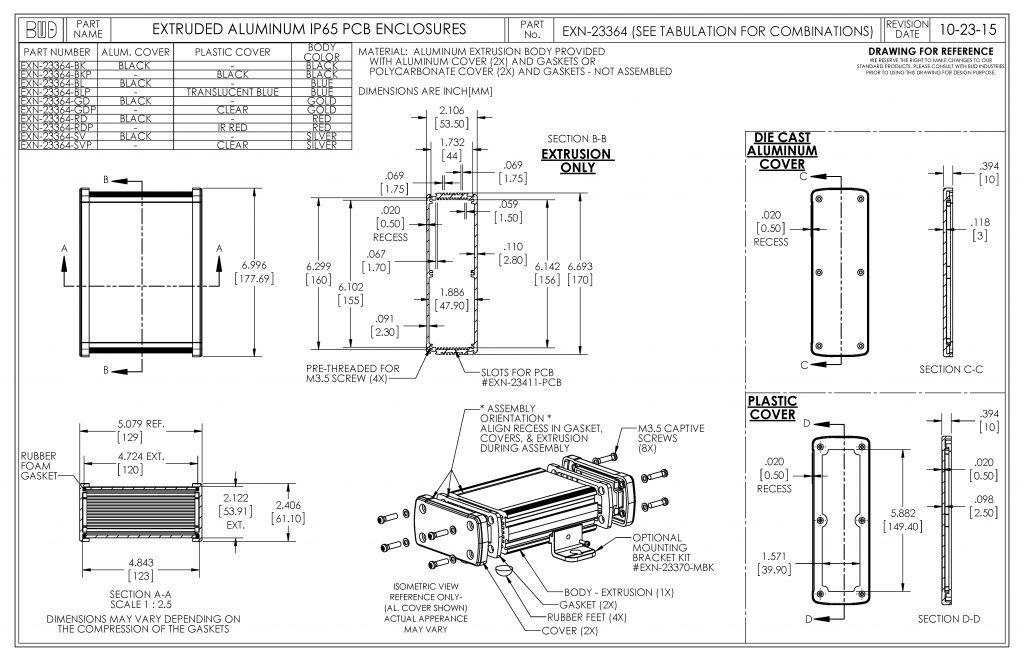

Drawing
